EEC-V won’t read QH Bin file

Post by AUXR8 » Sat May 29, 2021 8:55 am

Hi guys,
I’ve downloaded the complete ECU stock bin file using Tuner Pro Rt. I then loaded it into QH to get the ECU to read it from the QH instead of its own internal file. No good, car reacts like there’s no file in QH.
I remove QH from the ECU and the car starts fine.
I’ve been very careful not to connect/disconnect the QH with ignition on so I don’t think the QH is fried.
Anybody had this happen? May thanks for any tips!
Cheers, Pete

jsa
Tuning Addict
Posts: 859
Joined: Sat Nov 23, 2013 7:28 pm
Location: 'straya

Re: EEC-V won’t read QH Bin file

Post by jsa » Sat May 29, 2021 4:16 pm

Have you cleaned the goop and plastic coating off the EEC J3 port?
Cheers

John

95 Escort RS Cosworth - CARD QUIK COSY ANTI / GHAJ0
Moates QH & BE
ForDiag

AUXR8
Gear Head
Posts: 7
Joined: Tue May 18, 2021 11:03 pm

Re: EEC-V won’t read QH Bin file

Post by AUXR8 » Sat May 29, 2021 9:57 pm

Hi John,
Yes I have, cleaned it right back.
What I might do is put it all on the bench and check continuity from the ECU pcb tracks to the QH pcb tracks. Just to rule faulty contacts out altogether.

jsa
Tuning Addict
Posts: 859
Joined: Sat Nov 23, 2013 7:28 pm
Location: 'straya

Re: EEC-V won’t read QH Bin file

Post by jsa » Sat May 29, 2021 10:19 pm

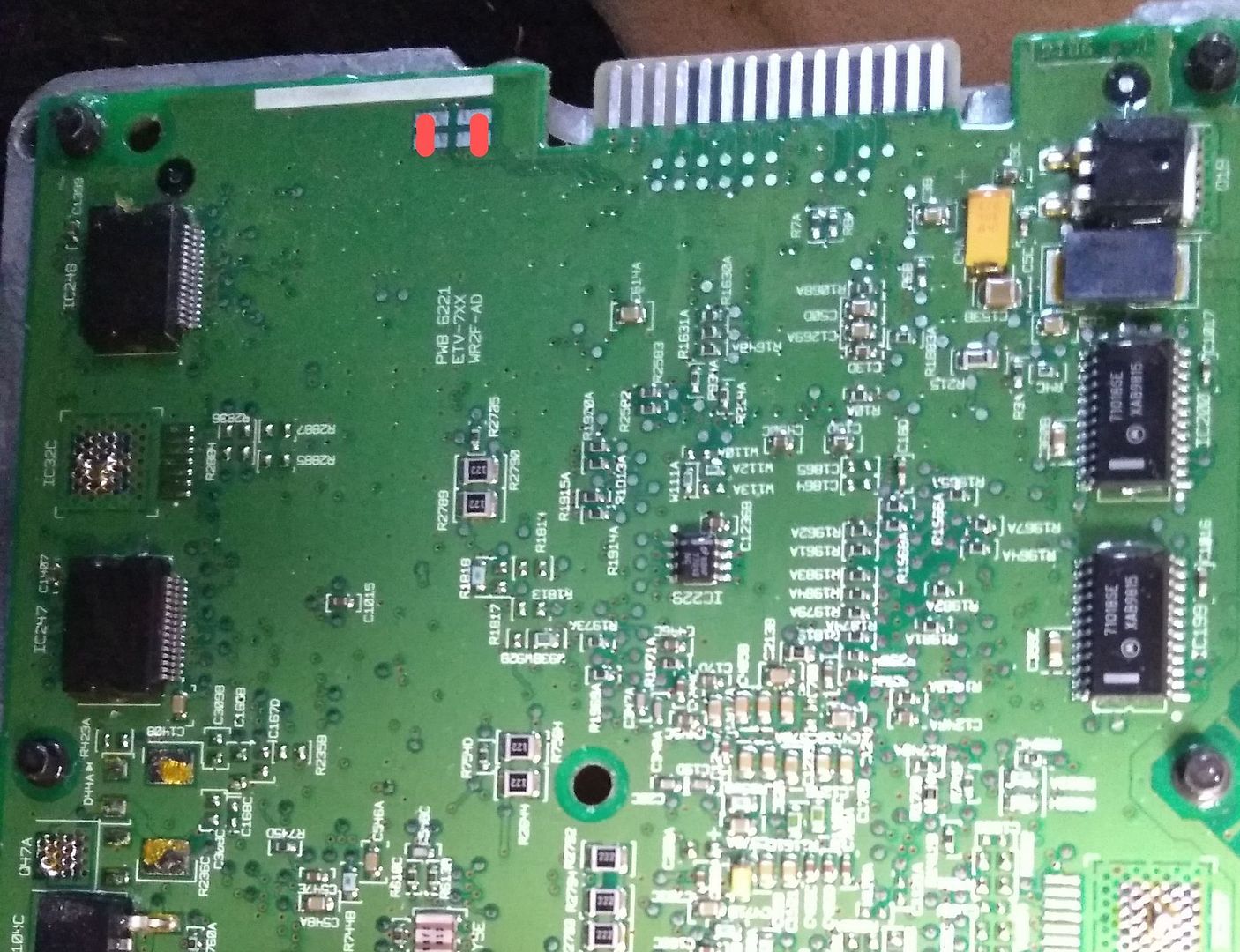

Some newer EEC's have J3 solder jumpers.
Thanks to Ironman for the pic.
After that it is having the QH set to serve the tune from from the location it is stored on the QH.
If that's all set right from TP then its a QH or EEC error.
Cheers

John

95 Escort RS Cosworth - CARD QUIK COSY ANTI / GHAJ0
Moates QH & BE
ForDiag

AUXR8
Gear Head
Posts: 7
Joined: Tue May 18, 2021 11:03 pm

Re: EEC-V won’t read QH Bin file

Post by AUXR8 » Tue Jun 01, 2021 12:05 am

Thanks again John.
Do the solder bridges run vertically or horizontally (as in the pics below)?



jsa
Tuning Addict
Posts: 859
Joined: Sat Nov 23, 2013 7:28 pm
Location: 'straya

Re: EEC-V won’t read QH Bin file

Post by jsa » Tue Jun 01, 2021 4:02 am

Horizontal. Bottom pic.
Cheers

John

95 Escort RS Cosworth - CARD QUIK COSY ANTI / GHAJ0
Moates QH & BE
ForDiag

AUXR8
Gear Head
Posts: 7
Joined: Tue May 18, 2021 11:03 pm

Re: EEC-V won’t read QH Bin file

Post by AUXR8 » Tue Jun 01, 2021 5:02 am

You bloody legend!!! Thanks John!!!

AUXR8
Gear Head
Posts: 7
Joined: Tue May 18, 2021 11:03 pm

Re: EEC-V won’t read QH Bin file

Post by AUXR8 » Tue Jun 01, 2021 10:04 pm

Bastard. EEC-V still won't read the QH bin file. Wah!!!
I must have a configuration problem...

AUXR8
Gear Head
Posts: 7
Joined: Tue May 18, 2021 11:03 pm

Re: EEC-V won’t read QH Bin file

Post by AUXR8 » Tue Jun 01, 2021 10:22 pm

Ok, dumb question...
Do I need a strategy loaded into Tuner Pro before the ECU will read a bin file from QH?
It's one thing I haven't done...

jsa
Tuning Addict
Posts: 859
Joined: Sat Nov 23, 2013 7:28 pm
Location: 'straya

Re: EEC-V won’t read QH Bin file

Post by jsa » Wed Jun 02, 2021 3:44 am

A blank def file is needed for Binary Editor. I don't use TP.
Cheers

John

95 Escort RS Cosworth - CARD QUIK COSY ANTI / GHAJ0
Moates QH & BE
ForDiag

AUXR8
Gear Head
Posts: 7
Joined: Tue May 18, 2021 11:03 pm

Re: EEC-V won’t read QH Bin file

Post by AUXR8 » Wed Jun 02, 2021 8:45 am

Thanks again John 👍
