Schematic drawing and photo of KAM clearing switch

Post by PoweredbyEECV » Tue May 18, 2010 11:55 pm

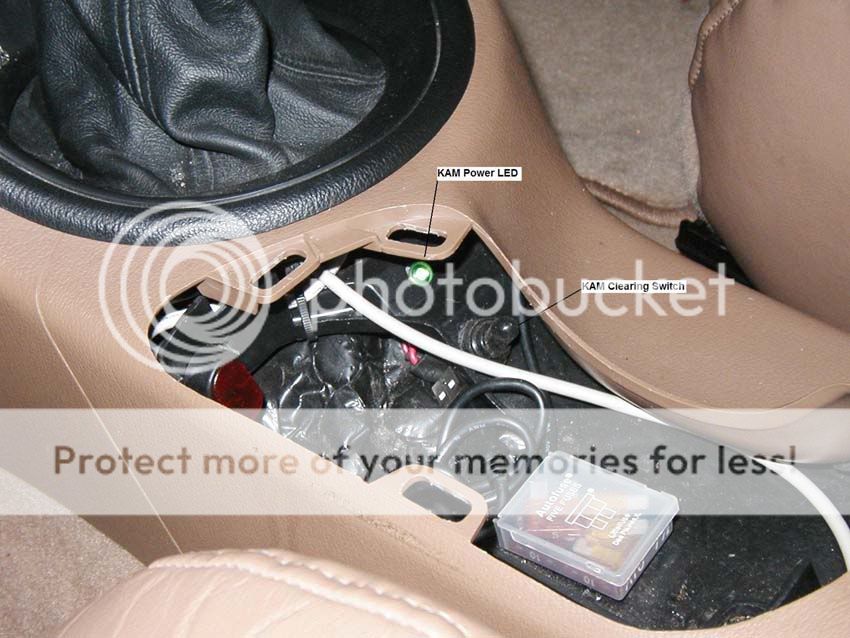

Attached are images of a KAM clearing switch schematic and the switch and KAM power LED installed under the cup holder in my 98 Cobra. I prefer to install them out of sight and the console under the cup holder makes for a great location for easy access. The relay and fuses are installed behind the right kick panel (Passenger side). All connections are soldered (wire nuts or crimp on connectors are not recommended) and covered with 2 pieces of heat shrink tubing to insure they are well insulated. Finally the wires are wrappeded in split loom from the kick panel to the cup holder area.
Good luck with your install. If you have any questions drop me a PM.


Last edited by PoweredbyEECV on Tue May 25, 2010 2:17 pm, edited 3 times in total.
98 SVT Cobra Convertible - Laser Red/Saddle/Saddle #2906 of 3480
BE - Version 2009 Build 39
Definition: CRAJ0
Binary file : AOL3
Tuning & Data Logging PC: Acer Aspire One Netbook, 1.60 GHz, 1.48 GB Ram - Windows XP HE SP3
TWEECER-RT with BE & EA Software, DataQ 148U for AFR & 3 bar MAP sensor, Wide Band Commander, KAM clearing switch.
Stock Engine w/: V1, S-Trim w/AC @ 10 PSI, 60 lbs injectors, T-Rex FP, FP set at 45 psi, no FMU. Custom CAI, IAT relocated, ProM-77 MAF. Scream'in Demon coil packs and Live Wires.

dualdj1
Tuning Addict
Posts: 627
Joined: Thu Feb 19, 2009 3:04 pm
Location: East Peoria, IL
Contact:

Re: Schematic drawing and photo of KAM clearing switch

Post by dualdj1 » Wed May 19, 2010 10:23 am

just curious, but does that mean that your LED light is on all the time, except when you have KAM power disabled? (ie even when the key is off)
1978 Mustang II King Cobra
89 5.0HO, Stock Short Block, Edelbrock 4bbl aluminum intake, Holley 650 double pumper, MSD 6AL, Ford F303 cam, 1.7:1 Crane Roller Rockers, Pocket Ported stock heads, Hedman Long Tube Headers
5 spd Manual
Full roll cage, 9" full floater w/Currie trac lock/373 gears, RCI Fuel Cell
Project Page: http://www.brandttuning.com/projects.htm

User avatar
PoweredbyEECV
Regular
Posts: 177
Joined: Wed Jun 04, 2008 11:55 pm

Re: Schematic drawing and photo of KAM clearing switch

Post by PoweredbyEECV » Wed May 19, 2010 1:07 pm

dualdj1 wrote:just curious, but does that mean that your LED light is on all the time, except when you have KAM power disabled? (ie even when the key is off)
Yes it does remain on all the time except when KAM power is disabled but because it is an LED it draws very little current. The car has sat for a month and started right up. The LED is optional but I like the fact it gives me a status that everything is working correctly.
98 SVT Cobra Convertible - Laser Red/Saddle/Saddle #2906 of 3480
BE - Version 2009 Build 39
Definition: CRAJ0
Binary file : AOL3
Tuning & Data Logging PC: Acer Aspire One Netbook, 1.60 GHz, 1.48 GB Ram - Windows XP HE SP3
TWEECER-RT with BE & EA Software, DataQ 148U for AFR & 3 bar MAP sensor, Wide Band Commander, KAM clearing switch.
Stock Engine w/: V1, S-Trim w/AC @ 10 PSI, 60 lbs injectors, T-Rex FP, FP set at 45 psi, no FMU. Custom CAI, IAT relocated, ProM-77 MAF. Scream'in Demon coil packs and Live Wires.

dualdj1
Tuning Addict
Posts: 627
Joined: Thu Feb 19, 2009 3:04 pm
Location: East Peoria, IL
Contact:

Re: Schematic drawing and photo of KAM clearing switch

Post by dualdj1 » Wed May 19, 2010 3:01 pm

cool what I thought. Was just thinking you could invert that (light on when no power on the KAM circuit), but my electronics knowledge is escaping me at the moment... :mrgreen:
1978 Mustang II King Cobra
89 5.0HO, Stock Short Block, Edelbrock 4bbl aluminum intake, Holley 650 double pumper, MSD 6AL, Ford F303 cam, 1.7:1 Crane Roller Rockers, Pocket Ported stock heads, Hedman Long Tube Headers
5 spd Manual
Full roll cage, 9" full floater w/Currie trac lock/373 gears, RCI Fuel Cell
Project Page: http://www.brandttuning.com/projects.htm

decipha

Re: Schematic drawing and photo of KAM clearing switch

Post by decipha » Fri May 21, 2010 4:53 am

if you reset kam's that often why not just disable them in the tune?

else you can keep the KAM fuse out if desired

User avatar
cgrey8
Administrator
Posts: 10525
Joined: Fri Jun 24, 2005 5:54 am
Location: Acworth, Ga (Metro Atlanta)
Contact:

Re: Schematic drawing and photo of KAM clearing switch

Post by cgrey8 » Fri May 21, 2010 6:36 am

decipha wrote:if you reset kam's that often why not just disable them in the tune?

else you can keep the KAM fuse out if desired
Some strategies may not have the KAM-clearing feature implemented. Or someone is using some other editor other than BE and doesn't get the ability to create a KAM-clearing tune. However even if you are using another editor, you should always be able to disable adaptive learning so the KAMs don't learn. That seems far more useful than clearing them all the time, particularly since personally, I find adaptive learning gets in the way during the tuning phase.

But the submission is interesting. If someone is so inclined to install a hardware KAM-killer, this would work and would've probably been quite useful 3-4+ years ago. But even when I was still using TunerPro and CalEdit, I just loaded one of my tune positions with a CBAZA tune and flipped to it to "kill" my KAMs. GUFx and CBAZA EECs have the same processor, but different RAM chips so CBAZA on a GUFx EEC crashes. Part of any code crash is the EEC clears the KAMs, so that trick worked like a charm and is still a valid way to do it today.
...Always Somethin'

89 Ranger Supercab, 331 w/GT40p heads, ported Explorer lower, Crane Powermax 2020 cam, 1.6RRs, FMS Explorer (GT40p) headers, Slot Style MAF, aftermarket T5 'Z-Spec', 8.8" rear w/3.27s, Powertrax Locker, Innovate LC-1, GUFB, Moates QuarterHorse tuned using BE&EA

Member V8-Ranger.com

User avatar
PoweredbyEECV
Regular
Posts: 177
Joined: Wed Jun 04, 2008 11:55 pm

Re: Schematic drawing and photo of KAM clearing switch

Post by PoweredbyEECV » Sun May 23, 2010 2:30 pm

I've actually had this installed for several years and found it is reliable. My car is my hobby and I enjoy modifying it so this was another "project" that provided therapy if you know what I mean. :biggrin: Just trying to contribute to the effort.

It looks like part of the image was cut off... not sure why???
Last edited by PoweredbyEECV on Tue May 25, 2010 12:57 pm, edited 1 time in total.
98 SVT Cobra Convertible - Laser Red/Saddle/Saddle #2906 of 3480
BE - Version 2009 Build 39
Definition: CRAJ0
Binary file : AOL3
Tuning & Data Logging PC: Acer Aspire One Netbook, 1.60 GHz, 1.48 GB Ram - Windows XP HE SP3
TWEECER-RT with BE & EA Software, DataQ 148U for AFR & 3 bar MAP sensor, Wide Band Commander, KAM clearing switch.
Stock Engine w/: V1, S-Trim w/AC @ 10 PSI, 60 lbs injectors, T-Rex FP, FP set at 45 psi, no FMU. Custom CAI, IAT relocated, ProM-77 MAF. Scream'in Demon coil packs and Live Wires.

dualdj1
Tuning Addict
Posts: 627
Joined: Thu Feb 19, 2009 3:04 pm
Location: East Peoria, IL
Contact:

Re: Schematic drawing and photo of KAM clearing switch

Post by dualdj1 » Mon May 24, 2010 10:18 am

looks fine to me, might not have loaded fully for you for some reason.
1978 Mustang II King Cobra
89 5.0HO, Stock Short Block, Edelbrock 4bbl aluminum intake, Holley 650 double pumper, MSD 6AL, Ford F303 cam, 1.7:1 Crane Roller Rockers, Pocket Ported stock heads, Hedman Long Tube Headers
5 spd Manual
Full roll cage, 9" full floater w/Currie trac lock/373 gears, RCI Fuel Cell
Project Page: http://www.brandttuning.com/projects.htm

User avatar
PoweredbyEECV
Regular
Posts: 177
Joined: Wed Jun 04, 2008 11:55 pm

Re: Schematic drawing and photo of KAM clearing switch

Post by PoweredbyEECV » Tue May 25, 2010 12:55 pm

dualdj1 wrote:looks fine to me, might not have loaded fully for you for some reason.
Yep, that was the problem it looks great now.
98 SVT Cobra Convertible - Laser Red/Saddle/Saddle #2906 of 3480
BE - Version 2009 Build 39
Definition: CRAJ0
Binary file : AOL3
Tuning & Data Logging PC: Acer Aspire One Netbook, 1.60 GHz, 1.48 GB Ram - Windows XP HE SP3
TWEECER-RT with BE & EA Software, DataQ 148U for AFR & 3 bar MAP sensor, Wide Band Commander, KAM clearing switch.
Stock Engine w/: V1, S-Trim w/AC @ 10 PSI, 60 lbs injectors, T-Rex FP, FP set at 45 psi, no FMU. Custom CAI, IAT relocated, ProM-77 MAF. Scream'in Demon coil packs and Live Wires.
